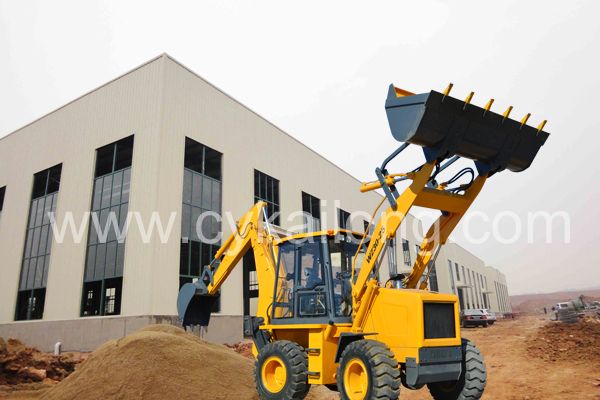

WZ30-25 Backhoe loader

Specification

Items

Technical Specifications

Rated lifting capacity

25KN

Bucket Capacity

1.0m³

Hoe bucket capacity

0.3 m³

Dump Height

2680mm

Dump Reach

945mm

Excavating radius

5780mm

Arm lifting time

6s

The sum of three items

≤11.5s

Max. speed

20km/h

Min. turning radius

5210mm

Max. Excavating depth

4500mm

Max. digging force

≥45KN

Max. Turing Angle

35°

Wheelbase

2350mm

Tread

1590mm

Tyre

Specification

16/17-20

Air Pressure

Front 0.32Mpa Rear 0.28Mpa

Operation Weight

7.6t

Figure

L x W x H

7130 x 2200 x 3850mm

Brake System

Air pressure of

0.6 - 0.8 Mpa

Service Brake

Air-hydraulic Combination

Transmission System

Type of Torque Converter

YJ280 single stage,single phase and three elements

Torque Ratio

3.1

Oil Pressure of Torque

0.25 - 0.3 Mpa

Type of Gearbox

Planetary Gear, power shift

Diesel Engine

Model

YTO LR4108/CUMMINS 4BT3.9-C100

Rated Power

65KW/74kw

Rated speed

2400r/min

Axles

Type of Main Transmission

Spiral bevel gear,one stage reduction

Reduction Ratio

26

Type of Final Reducer

Mono planetary gear

Oil Capacity

Fuel Tank

90L

Hydraulic System

130L

Engine Oil

11.5L

Gearbox

20L

Axle and Final Reducer

30L

Brake System

1.5L
