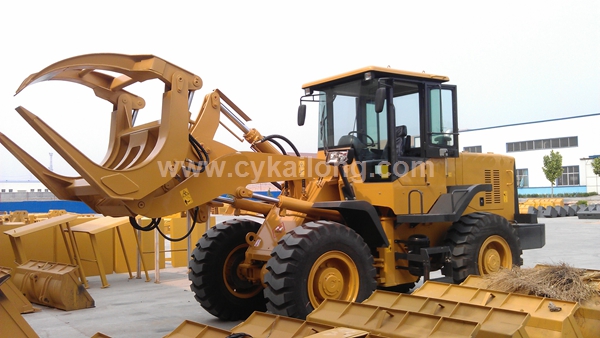

Kailong CL939

★Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability;

★Hangzhou Advance Gear Group double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force;

★Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor;

★Single lever pilot control system, comfortable and flexible operation;

★Single pump, split flow working hydraulic system realizes the excellent fuel economy;

★Double sealed hydraulic pipeline joints with 24° awl and 〇 ring of international standard, avoided oil leak- age obviously;

★Fully hydraulic load sensing steering system, flexible operation and higher reliability;

★Air over hydraulic disks on four wheel brakes;

★Large space articulated frames make operation and traveling stable;

★Working device with automatically leveling ability at high position;

★Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;

★Integral, luxury instrument board;

★New, luxury cabin.

Item

Specifications

Item

Specifications

Bucket capacity

1.8 m3

Rated power

92kW/2200rpm

Rated load

3000kg

Tyre

17.5-25

Dumping height

3000mm

Overall dimensions

6910 x2510 x3230mm

Max. breakout force

120kN

Operating weight

10200kg

Max. drawing force

96kN





Optional: Dongfeng Cummins 6BT5.9-C130 engine; ROPS/FOPS cabin; Quick hitch & attachments.
