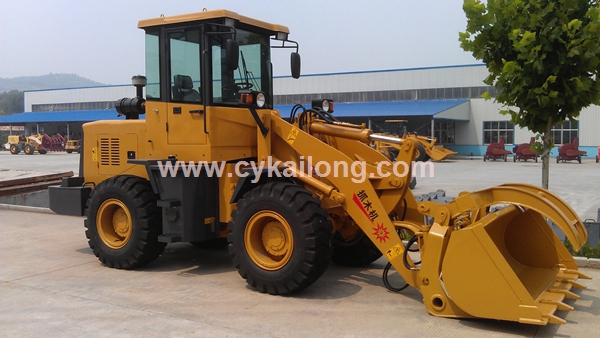

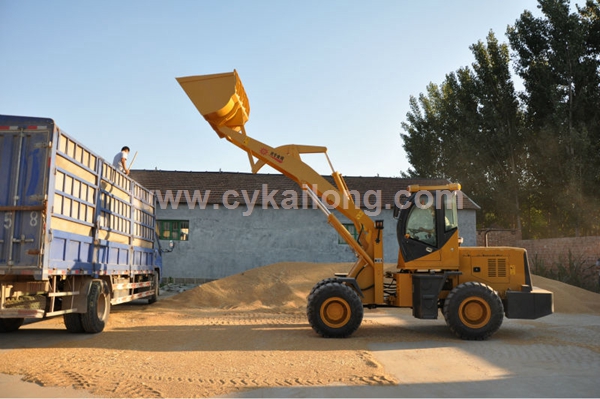

Kailong CL920

★Adopt Xinchai A4K41G diesel engine;
★Hydrodynamic transmission technology and separated structure,make high reliability and easy maintenance;
★Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy;
★Single pump, split flow working hydraulic system makes lower consumption and excellent performance;
★Double sealed hydraulic pipeline joints with 24° awl and 〇 ring of international standard,avoids oil leakage obviously;
★Load sensing fully hydraulic steering system makes operation easy;
★Air over hydraulic brake system; Caliper disc brakes;
★Working device with automatically leveling ability at high position;
★Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
★Integral, luxury instrument board;
★New, luxury cabin.

Item

Specifications

Item

Specifications

Bucket capacity

0.9 m3

Max. grade ability

28°

Rated load

1800kg

Rated power

50kW/2400rpm

Dumping height

2750mm

Tyre

16/70-20

Max. breakout force

46kN

Overall dimensions

5520 X1950 X 2670mm

Max. drawing force

35kN

Operating weight

5300kg

Optional: Lovol 1004C diesel engine; Dongfeng Cummins 4BTA3.9-C100 diesel engine; Joystick control; Quick hitch.
